BY1000M
BY1000 Serial
 |  |  |
| BY1000 | BY1000-6 | BY1000M |

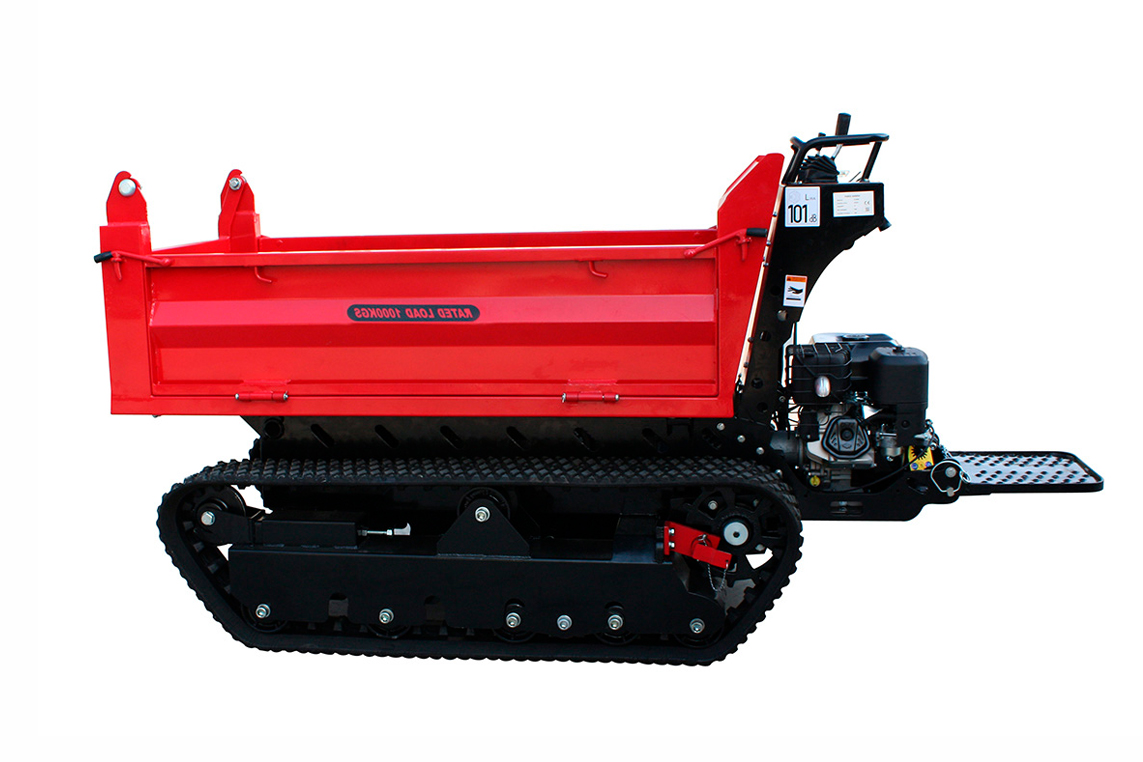

The BY1000 dumper is a tracked mounted, self loading dumping with a load capacity of 1000kg. It has unique design with humanization and its main parts are imported from USA with world wide warranty.

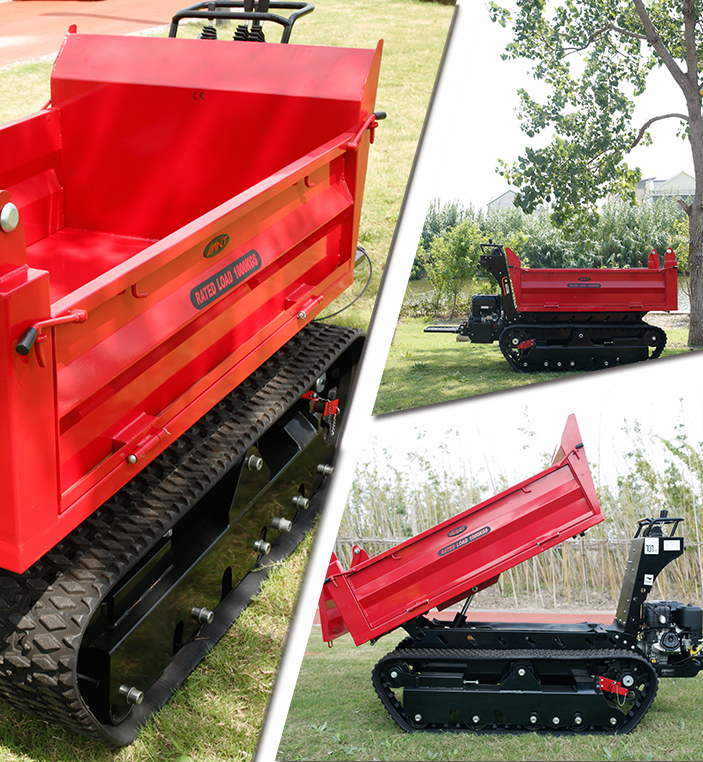

In action! Photos and Videos

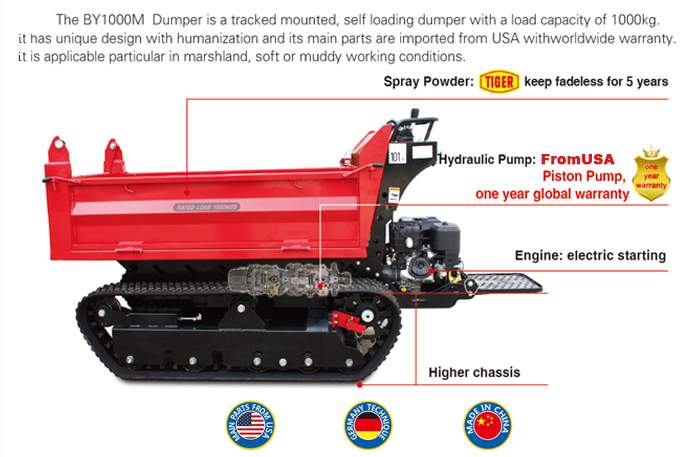

Details
 |  |  |  |
| BRAKE FRAME | ELECTRIC START | HEAVY DUTY RUBBER | ROCKING ROLLERS |
| SWITCH | TRACK | ||
 |  |  |  |
| PISTIONS PUMPS | SIGHT FUEL LEVEL | TIMER | FILTER |

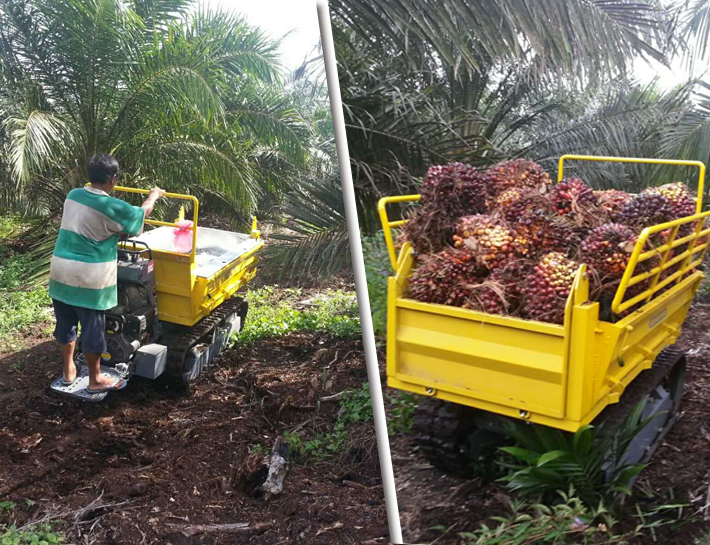

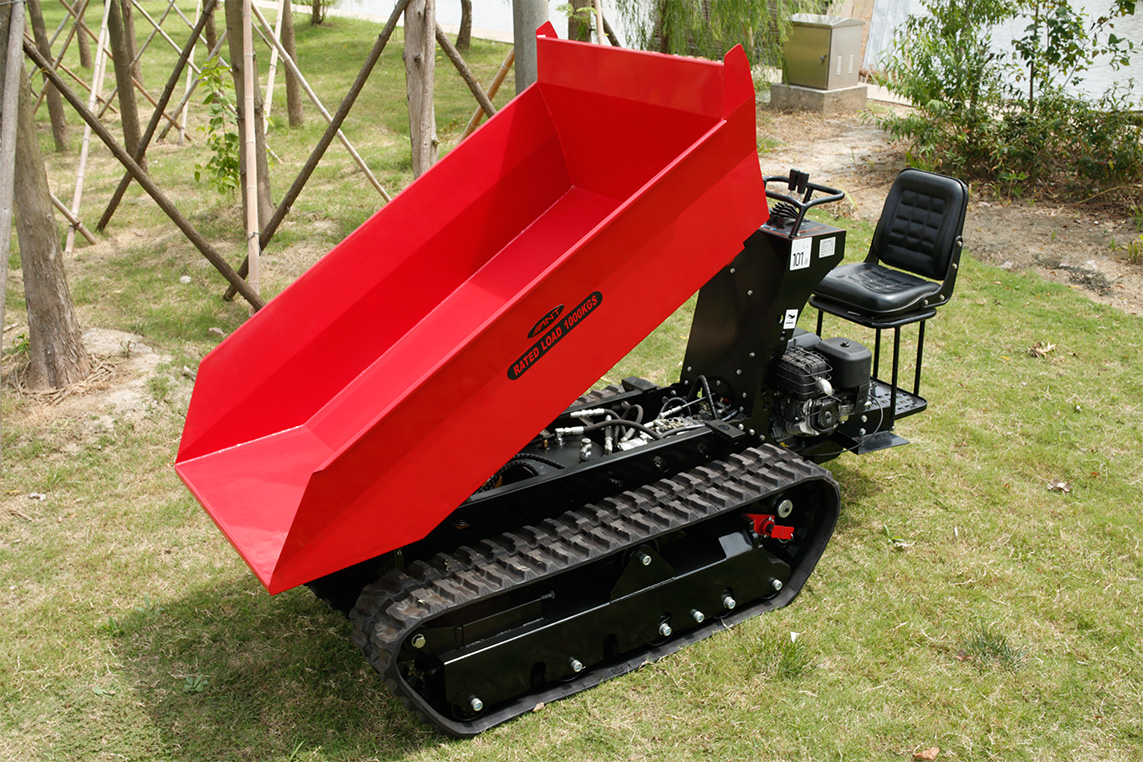

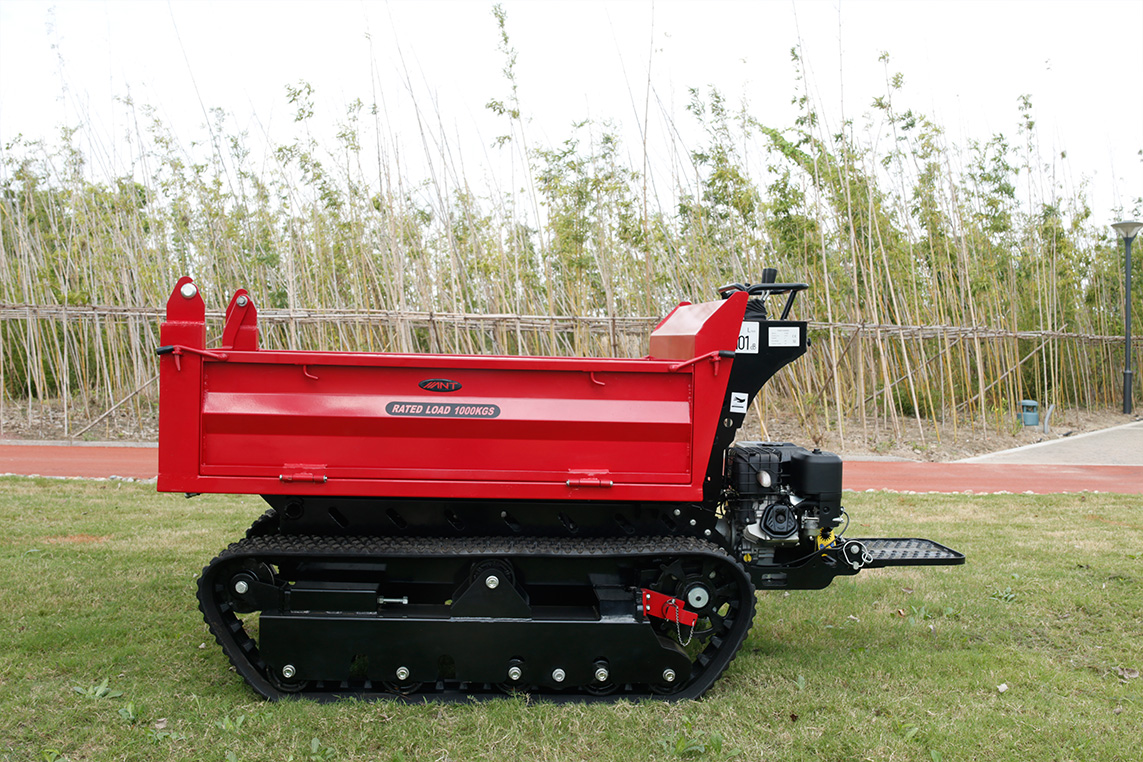

Operation Pictures
Technical Data Sheet
| Description | BY1000 | BY1000M | BY1000-6 |
Weight kg(lb)  | 600(1320) | 800(1764) | 600（1320） |

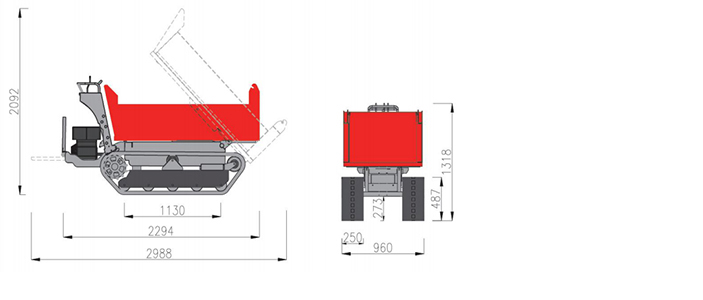

Dimension mm(in)  | 1810*900*1200 | 2250*1120*1600 | 2300*1300*1200 |
Engine  | Honda GX390 13HP | Honda GX390 13HP | Honda,Biggs&stratton13.5HP Engine |
Transmission  | Piston pump | Piston pump | Hydraulic piston pump |
Loading weight kg(lb) | 1000(2200) | 1000(2200) | 1000（2200） |
Drum material  | Plastic-Spray | Plastic-Spray | Plastic-Spray |
We reserve the right to improve or withdraw the specification or products without prior notice.
