GXH50
 | Features .Easy starting, OHV horizontal-shaft mini 4-stroke engine. Applications: Generators, Pumps, Tillers, Small construction equipment |
| Specifications | GXH50 2.5HP |  |
| Engine Type | Air-cooled, 4- Stroke, OHV, single cylinder | |
| Bore x Stroke | 41.8 x 36 mm (1.65 x 1.42 in) | |
| Displacement | 49 cm3 (2.99 cu in) | |
| Compression Ratio | 8.0 : 1 | |

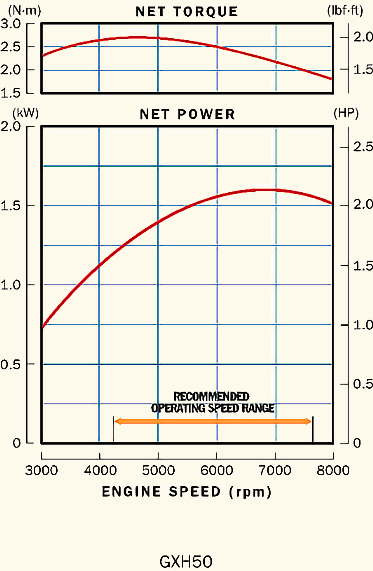

| Net Horse Power Output* | 1.6kW (2.1HP) at 7,000 rpm | |
| Net Torque | 2.7 Nm (2.0 lbs ft) at 4,500 rpm | |
| PTO Shaft Rotation | Counterclockwise | |
| Ignition System | Transistorized magneto ignition | |
| Starting System | Recoil Starter | |
| Carburetor | Float Type | |
| Lubrication System | Forced Splash | |
| Governor System | Centrifugal Mechanical | |
| Air Cleaner | Semi-dry Type | |
| Oil Capacity | 0.25l (0.26 US qt, 0.22 Imp qt) | |
| Fuel Tank Capacity (liter) | 0.77l (0.81 US qt) | |
| Dimensions (L x W x H) | 225mm(8.9 in) x 274mm (10.8 in) | |
| Dry Weight | 5.5 kg (12.1 lbs) | |
| * The power rating of the engine indicated in this document is the net power output tested on a production engine for the engine model andmeasured in accordance with SAE J1349 at 3600rpm (7000 rpm for model GHX50). Mass production engines may vary from this value. Actual power output for the engine installed in the final machine will vary depending on numerous factors, including the operating speed of the engine in application, environmental conditions, maintenance and other variables. | ||
We reserve the right to improve or withdraw the specification or products without prior notice.
